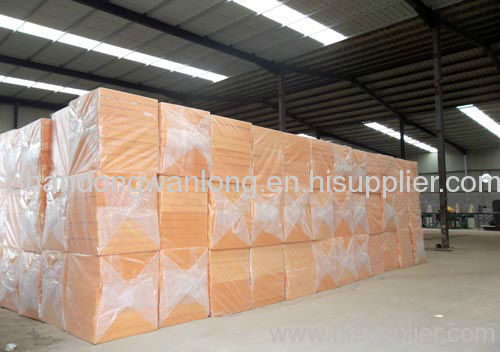

Thermal phenolic building material foam board

Price:	4.0~16.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: WL-FTI

Production Capacity: 60000 meters/month

Delivery Date: within 20 days

Brand Name: Shandong wanlong

Total Thickness: 20-200mm

Flexural Strength: 1Mpa

Standard Size: 240*600*20-150(L*W*T)

Means of Transport: Ocean,Land,Air

Packing: Standard packing

Material: Others

Density: 40-60/m3

Thermal Conductivity: 0.020-0.030w/m.k

Compressive Strength: 0.25Mpa

Fireproof phenolic foam insulation board for exterior wall
1.Heat insulation
2.Fire resistance
3.Easy installation

Fireproof phenolic foam insulation board for exterior wall

Specifications:

Fireroof thermal phenolic insulation foam board

1.Great heat insulation

2.Excellent sound insulation

3.Light weight

4.Long life

5.Fire resistance

Technical Data Sheet of Phenolic Foam
ITEM	UNIT	SPECIFICATION
Density	kg/m3	40-60
Double side Aluminum thickness	mm	0.04, 0.08 etc.
Total thickness	mm	20-200
Thermal Conductivity	w/m.k	0.020-0.030
Flexural Strength	Mpa	1
combustion property	~	Non-combustible Class A
Water Absorption Rate	%	1.9
Max Smoke Density	%	2
Dimension Change Rate	%	0.3
Compressive Strength	Mpa	0.25
Service Temperature		-200to200
Standard Size	mm	24060020-150(LWT)

Advantages:

1. Excellent fireproof performance

Thermal insulation layer adopts phenolic foam, and other composite materials used for building insulation,

fundamentally eliminate the insulation and the possibility of fire, use temperature range is -200 °C ~ +200°C.

2. Thermal insulation energy-saving effect of prominent

Phenolic insulating plate has a good thermal insulation properties, its thermal conductivity is about 0.020-0.030W/ (m · K), far below the current market used inorganic, organic external insulation products, can achieve higher energy saving effect.

3. A wide range of uses

Not only can be used for traditional exterior insulation system, can also be made with facing layer composite

thermal insulation decorative integration plate, but also can be used to construct traditional EPS/XPS/PU

external wall insulation system fireproof isolation belt, used as a curtain wall of fire insulation materials, fire door inner insulation material, as well as low or high temperature fire insulation materials.

Application:

Its widely used in workshops, Cleaning rooms, High class buildings, Storages house, Garage, Super-Market containers, etc.

1. Frost protection layers

2. Flat steep roof insulation

3. Ceiling heat insulation

4. Interior fitting

5. Perimeter insulation

6. HVAC Air duct

Shandong Wanlong Building Materials &Technology Co. Ltd.
ADD:Baiyanghe Industrial Park, Qixia, Yantai, Shandong, China
E-mail:shandongwanlongATgmail.com
Tel:+86 535 6899998
Fax:+86 535 6899998
